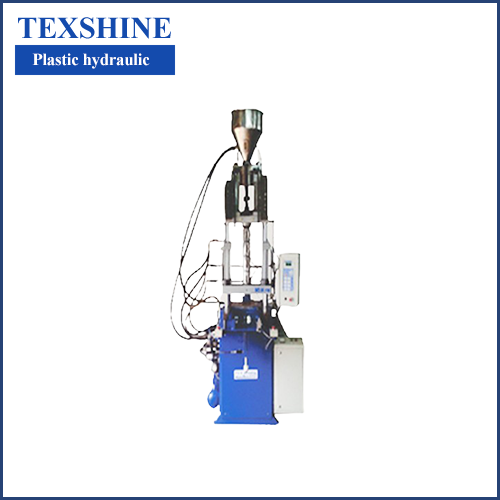

Vertical Insert Moulding Machine

Tex Shine Plastic Hydraulic is the Leading Manufacturer of Vertical Insert Moulding Machine in Coimbatore

1. VERTICAL INJECTION / VERTICAL MOULDING – IMS – 45S : INJECTION UNIT:

Model UNIT IMS – 45S
Screw code   A       B
Screw diameter mm 32    35
Screw stroke mm 175
Shot weight gms 100  125
L/D Ratio   20:1  19:1
Working pressure bar 120
Screw speed rpm 200





CLAMPING UNIT:

MODEL UNIT IMS – 45S
Clamping force ton 45 Direct
Opening stroke mm 250
Mould thickness Min/Max mm 150 -250
Max day light opening mm 250
Platen size mm 600 * 450
Distance between die bar (H*V) mm 350 * 250
Ejector force ton 3.5
Ejector stroke mm 50



GENERAL UNIT:

Oil tank capacity Liters 200
Machine weight (approx.) ton 3.0
Machine Dimension L*H*B mm 1250*3600*700



ELECTRICAL UNIT:

MODEL UNIT IMS – 45S
Electrical Motor Power HP/KW 7.5/5.5
Heater load KW 6.5
Heater zone Zone 4
