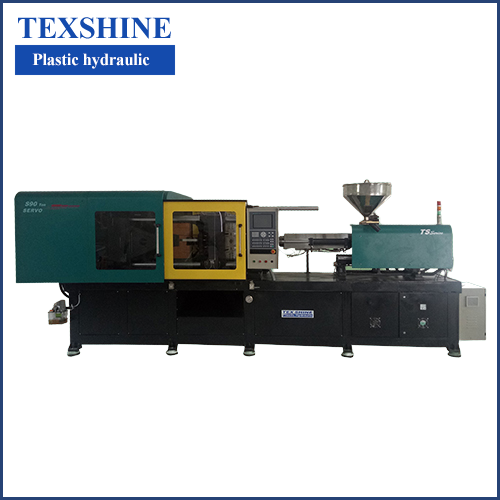

Tex Shine Plastic Hydraulic is the leading Manufacturer of Horizontal Screw Type Injection Moulding - TS 90 in Coimbatore
Injection Unit:
| Screw Diameter | mm | 30 | 32 | 40 |
| Screw L / D Ration | 22 | 20.3 | 18.4 | |
| Shot Size (Theoretical) | cm | 163 | 193.5 | 235 |
| Injection Weight (ps) | Gms | 106 | 140 | 183 |
| Screw Speed | Mpa | 219 | 184 | 152 |
| Screw Speed | r/min | 210 |
Clamping Unit:
| Clamp Tonnage | KN | 900 |
| Toggle Stroke | mm | 350 |
| Tia bar Diameter | mm | 65 |
| Space Between Tie bars | mm | 370x370 |
| Max. Mold Height | mm | 380 |
| Min. Mold Height | mm | 150 |
| Ejector Stroke | mm | 120 |
| Ejector Tonnage | KN | 38 |
Others:
| operating pressure | Bar | 140 |
| pump motor power (sl) | KW | 10.5 |
| Servo pump | LPM | 60lpm |
| Heater power | KW | 7.5 |
| Machine Dimension (LxWxH) | m | 4.3x1.3x2.0 |
| Machine Weight (approx) | 1 | 3.4 |
