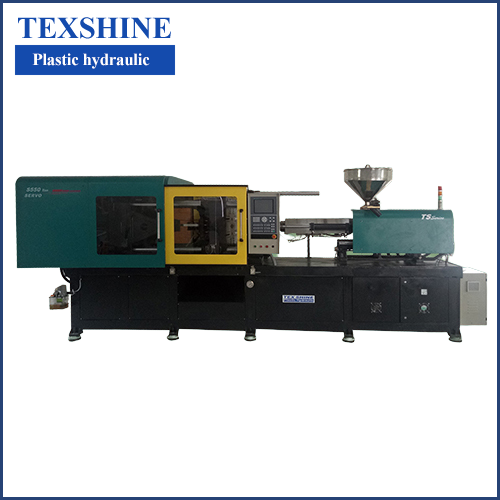

TS 550 - Injection Moulding Horizontal Screw Type
Tex Shine Plastic Hydraulic is the leading Manufacturer of Horizontal Screw Type Injection Moulding - TS 550 in Coimbatore
Injection Unit:
| Screw Diameter /mm | 80 | 85 | 90 | 95 |
| Screw L / D Ration | 23 | 21.1 | 19.5 | 18.8 |
| Shot Size (Theoretical)/ cm | 2187 | 2468 | 2767 | 3082 |
| Injection Weight (ps)/ Gms | 1990 | 2246 | 2518 | 2901 |
| Screw Speed /Mpa | 188 | 167 | 149 | 134 |
| Screw Speed | r/min | 150 |
Clamping Unit:
| Clamp Tonnage | KN | 5500 |
| Toggle Stroke | mm | 900 |
| Tia bar Diameter | mm | 150 |
| Space Between Tie bars | mm | 900x820 |
| Max. Mold Height | mm | 850 |
| Min. Mold Height | mm | 350 |
| Ejector Stroke | mm | 260 |
| Ejector Tonnage | KN | 200 |
Others:
| operating pressure | Bar | 160 |
| pump motor power (sl) | KW | 30x30 |
| Servo pump | LPM | duel pump 200+175 |
| Heater power | KW | 37.2 |
| Machine Dimension (LxWxH) | m | 9.6x2.4x2.7 |
| Machine Weight (approx) | 1 | 16 |
