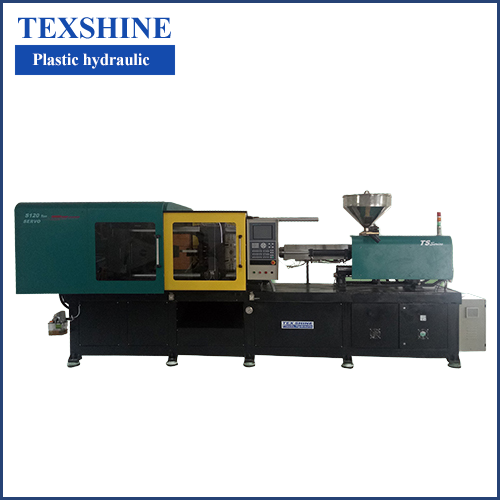

Tex Shine Plastic Hydraulic is the leading Manufacturer of Horizontal Screw Type Injection Moulding - TS 120 in Coimbatore
Injection Unit:
| Screw Diameter | mm | 38 | 42 | 45 |
| Screw L / D Ration | 24 | 22 | 20.5 | |
| Shot Size (Theoretical) | cm | 226 | 277 | 318 |
| Injection Weight (ps) | Gms | 206 | 252 | 289 |
| Screw Speed | Mpa | 208 | 171 | 149 |
| Screw Speed | r/min | 185 |
Clamping Unit:
| Clamp Tonnage | KN | 1300 |
| Toggle Stroke | mm | 380 |
| Tia bar Diameter | mm | 70 |
| Space Between Tie bars | mm | 420x420 |
| Max. Mold Height | mm | 450 |
| Min. Mold Height | mm | 160 |
| Ejector Stroke | mm | 120 |
| Ejector Tonnage | KN | 50 |
Others:
| operating pressure | Bar | 140 |
| pump motor power (sl) | KW | 10.7 |
| Servo pump | LPM | 80lpm |
| Heater power | KW | 8 |
| Machine Dimension (LxWxH) | m | 4.6x1.5x2.1 |
| Machine Weight (approx) | 1 | 4 |
