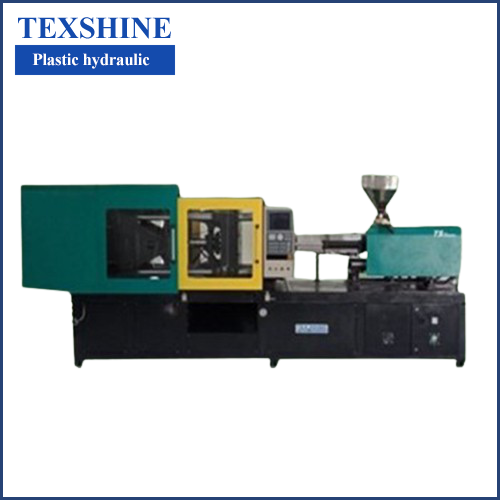

ST-40S Plastic Injection Molding Machine

Tex Shine Plastic Hydraulic is the Leading Manufacturer of ST-40S Plastic Injection Molding Machine in Coimbatore


MODEL UNIT ST 180S
Raw Material   HDPE,PE,PP,PS
Screw diameter mm 25-30
Screw stroke mm 150
Shot weight gms 100
L/D Ratio   201,191
Working pressure bar 120
Screw speed rpm 200



CLAMPING UNIT:

MODEL UNIT ST 180S
Clamping Way ton Hydraulic
Opening stroke mm 225
Mould thickness Min/Max mm 100 - 350
Max day light opening mm 575
Clamping Force Ton 40
Distance between die bar (H*V) mm 350 X 300
Ejector force ton 1
Ejector stroke mm 50



GENERAL UNIT:

Oil tank capacity Liters 120
Machine weight (approx.) ton 1.5
Machine Structure   Horizontal
Voltage V 230



ELECTRICAL UNIT:

MODEL UNIT ST 180S
Electrical Motor Power HP/KW 7.5/ 5.5
Heater load KW 5.0
Heater zone Zone 4
