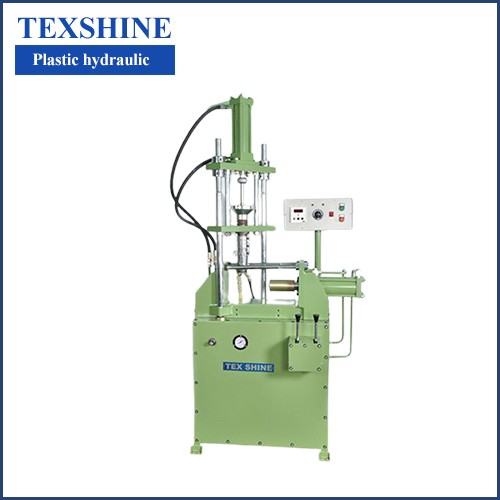

Plunger Type Injection Moulding Machine 12Hde

Tex Shine Plastic Hydraulic is the Leading Manufacturer of Plunger Type Injection Moulding Machine 12Hde in Coimbatore


ITEM UNIT PIM 12 HDE
Shot Capacity gms 150
Barrel /Screw diameter mm 50
Clamping force tons 18
Die clamping   Direct hydraulic cylinder
Max. mould size mm* mm 250 * 250
Min. mould thickness MM 120
Max. mould thickness mm 400
Max . mould opening mm 120
Daylight opening mm 400
Heater capacity Kw 2.5
Motor Hp 5
Total power Kw 6.25
Oil tank capacity Liters 80
System pressure bar 105
Weight approximately tons 0.750
