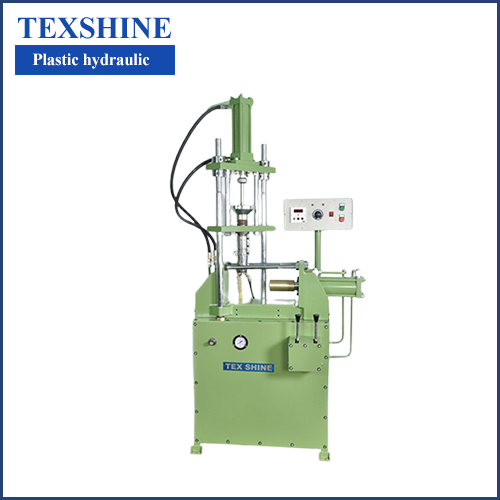

Plunger Type Injection Moulding Machine 1 Hdb

Tex Shine Plastic Hydraulic is the Leading Manufacturer of Plunger Type Injection Moulding Machine 1 Hdb in Coimbatore

ITEM UNIT PIM 1HDB
Shot Capacity gms 30
Barrel /Screw diameter mm 25
Clamping force tons 4
Die clamping   Direct hydraulic cylinder
Max. mould size mm* mm 150 * 150
Min. mould thickness MM 60
Max. mould thickness mm 200
Max . mould opening mm 100
Daylight opening mm 300
Heater capacity Kw 0.75
Motor Hp 2
Total power Kw 2.25
Oil tank capacity Liters 35
System pressure bar 50
Weight approximately tons 0.350
