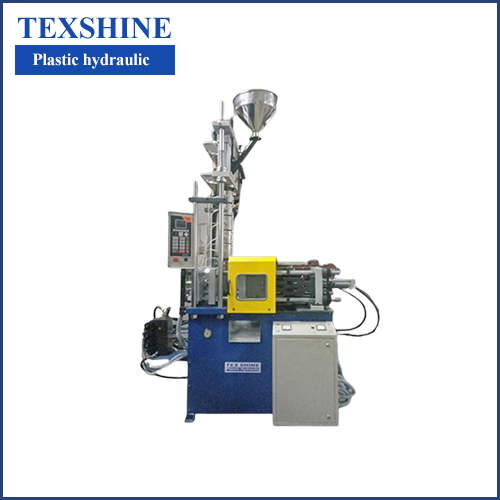

Tex Shine Plastic Hydraulic is the Leading Manufacturer of Horizontal Locking Vertical Screw Type Injection Moulding - PIM7HLVS in Coimbatore

shot capacity	gms	100
Barrel / Screw Diameter	mm	35
Clamping Force	tons	30
Dia Clamping		toggle actuated by hydraulic cylinder(5 point toogle)
max.mould size	mmxmm	300*300
min. mould thickness	mm	100
max.mould thickness	mm	260
max mould opening	mm	200
daylight opening	mm	460
Heater Capacity	kw	5.5
Motor	hp	5/7.5
Total power	kw	9.7
oil tank capacity	liters	80
system pressure	bar	105/120
weight approx	ton	1.25
