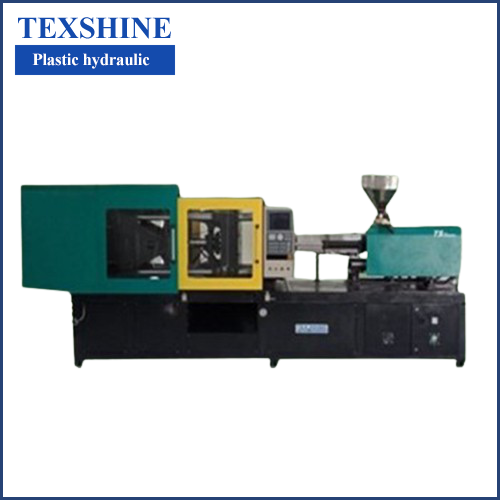

30 Ton Plastic Injection Machine

Tex Shine Plastic Hydraulic is the Leading Manufacturer of 30 Ton Plastic Injection Machine in Coimbatore

Brand Texshine
Strap Type Automatic
Machine Structure Horizontal
Raw Material HDPE,PE,PP,PS,PMMA
Clamping Force 30 Ton
Ejector Stroke 100 mm
L/D Ratio 201,191
Machine Weight 3 Ton
Model No. IMS-30S
Oil tank capacity 160 Liter
Operation Mode Automatic
Screw Diameter 35 - 40 mm
Screw Speed 200 rpm
Screw Stroke 225 mm
Shot Weight 80 GMS
Mould Thickness 300 mm
Mould Opening Stroke 250 mm
Working Pressure 105 Bar
Distance Between Tie Bar 300 x 250 mm (H&V)
Heater Load 4 kW
Max Day Light Opening 520 mm
Electrical Motor Power 5 HP
Heat Zone 4 Zone
Ejector Force .7 Ton
